bonding gas pipe in house | Mike Holt's Forum Equipotential bonding for livestock and pools is not the same as bonding a gas line. If, for instance, there is a gas furnace, then the equipment grounding conductor of the circuit that feeds the furnace will bond the gas as well as the ductwork. If, however, there is the flexible CSST then the op may need either a 1/0 or a #2 to bond the gas line. Flexible Gas Piping And Proper Grounding Of Flexible Gas ... Building Codes requiring bonding of CSST flexible gas lines came into practice no earlier than 2007. This code came in as a response to damage to flexible gas lines and fires in homes struck by lightning. As you can see, there is a significant multi-year gap in which Building Codes did not require proper bonding of flexible gas lines.

Direct Bonding of Standard (Yellow) CSST Gas Lines ... Direct Bonding of Standard (Yellow) CSST Direct bonding is required for gas piping systems incorporating standard (yellow) or uncoated CSST whether or not the connected gas equipment is electrically powered. This requirement is provided as part of the manufacturer's instruction for single-family and multi-family buildings and required by the 2009 and later editions of the […]

How to bond csst gas line diagram

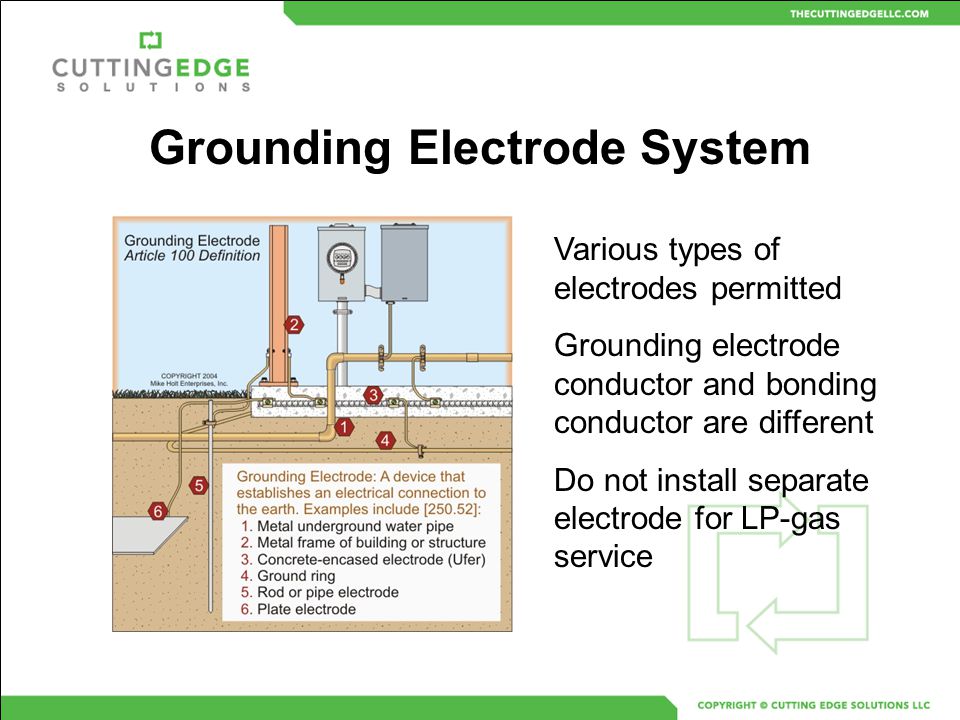

Do you have CSST Gas Piping? Check for Bonding. - HomesMSP When CSST is damaged, it can leak gas and cause an explosion and/or a fire. To the best of my knowledge, all manufacturers of CSST began implementing specific bonding requirements around 2007. Of course, proper bonding won't make CSST immune to damage from a nearby lightning strike, but it will reduce the risk of damage. Gas line bonding - General Inspection Discussion ... You can't actually "bond" the system to earth. Bonding is bonding is bonding. You don't bond something "back to" something - it's either bonded, or it is not. If the gas line is bonded to the GES, then the GES is also bonded to the gas line. Likewise, if the service equipment is bonded to the GES, it is also bonded to the gas piping. PDF Installation of CSST Gas Piping Systems - Connecticut CSST. CSST gas piping systems shall be bonded to the electrical service grounding electrode system. The bonding jumper shall connect to a metallic pipe or fitting between the point of delivery and the first downstream CSST fitting . The bonding jumper shall not be smaller than 6 AWG copper wire or equivalent. Gas piping systems

How to bond csst gas line diagram. PDF FACT SHEET - American Gas Association NFGC section 7.12.1 specifies when and how the bonding of gas piping other than CSST is to be undertaken. When a gas appliance has an electrical connection, that appliance may energize the gas piping system, and a bond is required. The NFGC does not require gas piping other than CSST to be PDF 4.10 Electrical Bonding - Pro-Flex CSST c) A single bonding clamp that is listed to UL 467 is to be attached to EITHER a CSST Fitting OR a rigid pipe or rigid component at any point in the gas piping system downstream of the gas meter or second stage regulator in an accessible location. How to bond csst gas line diagram - Meanings.co CSST Gas Lines Must Be Grounded. Since 2009, US building codes have required CSST to be bonded and grounded for safety, but that was not required during the first 18 years. If you have CSST in your home and gas supply line work was done there since 1990, you need to be sure it is safe. How to Properly Bond HOME-FLEX CSST - YouTube How to properly bond HOME-FLEX Corrugated Stainless Steel Tubing (CSST). To protect from electrical arcing and meet code NFPA 54 Sec 7.13.Become a Qualified ...

Csst Bonding Diagram Csst Bonding Diagram. Properly bonding and grounding of a Corrugated Stainless Steel Tubing (CSST) system may reduce the risk of damage and fire from a lightning strike. While inspecting gas lines, a home inspector should confirm that the CSST gas system has been properly bonded to the grounding. Nov 22, I need to bring up the subject of CSST ... CSST Gas Lines - Installation And Bonding Requirements CSST is a flexible gas line material that has been used in millions of homes across the United States and the world. CSST is short for Corrugated Stainless Steel Tubing . It was invented in the 1980's in Japan. The reason for the development of CSST was to improve the safety of gas line systems in buildings during earthquakes. PDF DESIGN AND INSTALLATION GUIDE - Gastite Flexible Gas ... CSST gas system to the grounding electrode system of the premises. Refer to Section 4.10 Electrical Bonding/ Grounding in the Gastite® Design & Installation Guide for details on bonding & grounding CSST. 2 ALL OWNERS should consult a lightning safety consultant to determine whether installation of a light- PDF ICC PMG Official CodeNotes non-CSST piping systems must be bonded when CSST is added to the system regardless of the length of CSST added. Bonding of CSST Gas Piping Clamp Attachment on CSST Fitting Example of Multi-piping Material System A HISTORY NOTE: Corrugated stainless steel tubing (CSST) originated in Japan as a solution to damaged gas piping caused by earthquakes.

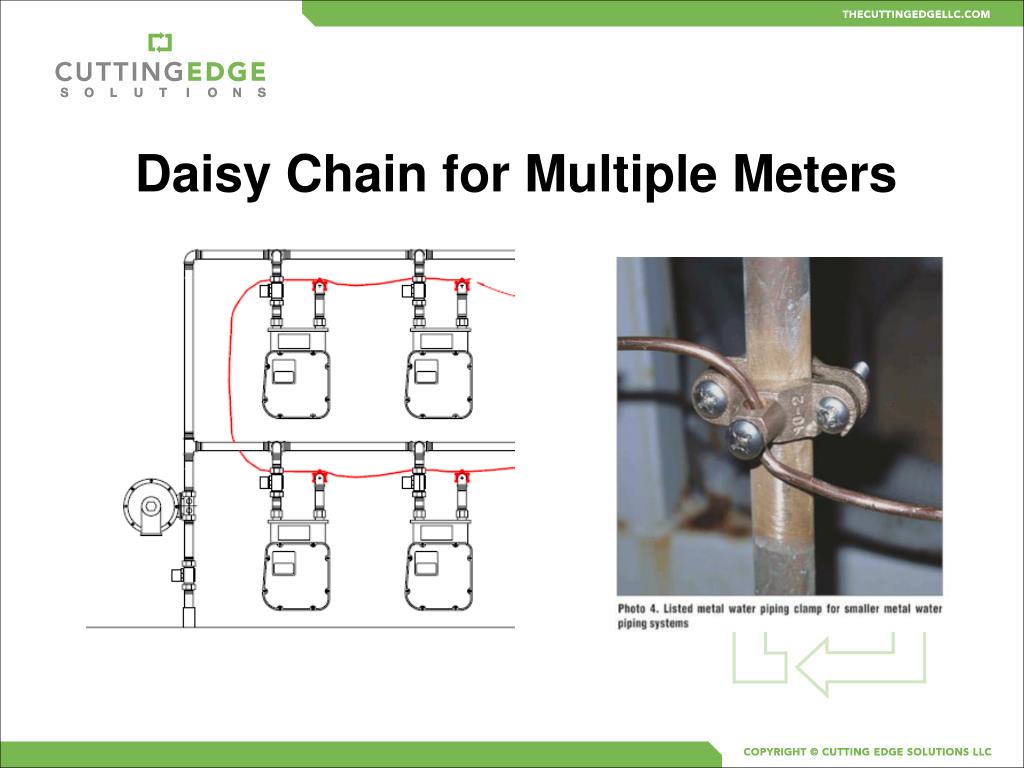

CSST GAS PIPE bonding requirements - Top to Bottom Home ... CSST, which stands for Corrugated Stainless Steel Tubing. If you own a newer home or you've recently had gas lines added to your home, there's a good possibility that CSST was used. This is a relatively new, flexible material that is approved for the distribution of natural gas inside of homes. gas - Bond CSST to Water Pipe - Allowed in 2017 NEC 250 ... The gas system only needs to be bonded at one point. Bonding the black iron at the meter to a legal bonding point (anywhere on the grounding electrode system, basically, using a listed tap connector such as an ILSCO GTT-2-2 to connect the gas bond wire to the GEC, or simply by landing the gas bond wire on the intersystem bonding termination device if one is present) will suffice for bonding ... CSST Bonding - DoItYourself.com Community Forums Electrical - AC & DC - CSST Bonding - Hi, I have about 20' of CSST that runs from the main iron gas line to the kitchen stove. 1. Do you think it's necessary to ground? 2. If necessary to ground, can I run a ground wire from point B (see diagram) to a common ground wire inside an electrical switch box? Thanks! Protection & Bonding - Gastite For attachment to the FlashShield™ CSST gas piping system, a single bonding clamp must be attached to either a segment of steel pipe, a rigid pipe component or to the XR3 brass hex fitting. For attachment to a segment of steel pipe or a rigid pipe component any bonding clamp listed to UL467 may be used.

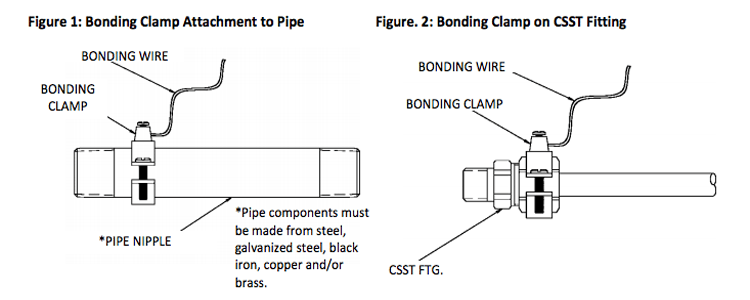

CSST Bonding: What is it? (And Why is it Necessary ... CSST Bonding Diagram. For proper bonding of CSST, a separate bonding wire is connected to the rigid gas piping before the CSST, or directly to one of the CSST nuts. The below figure shows the CSST bonding diagram.

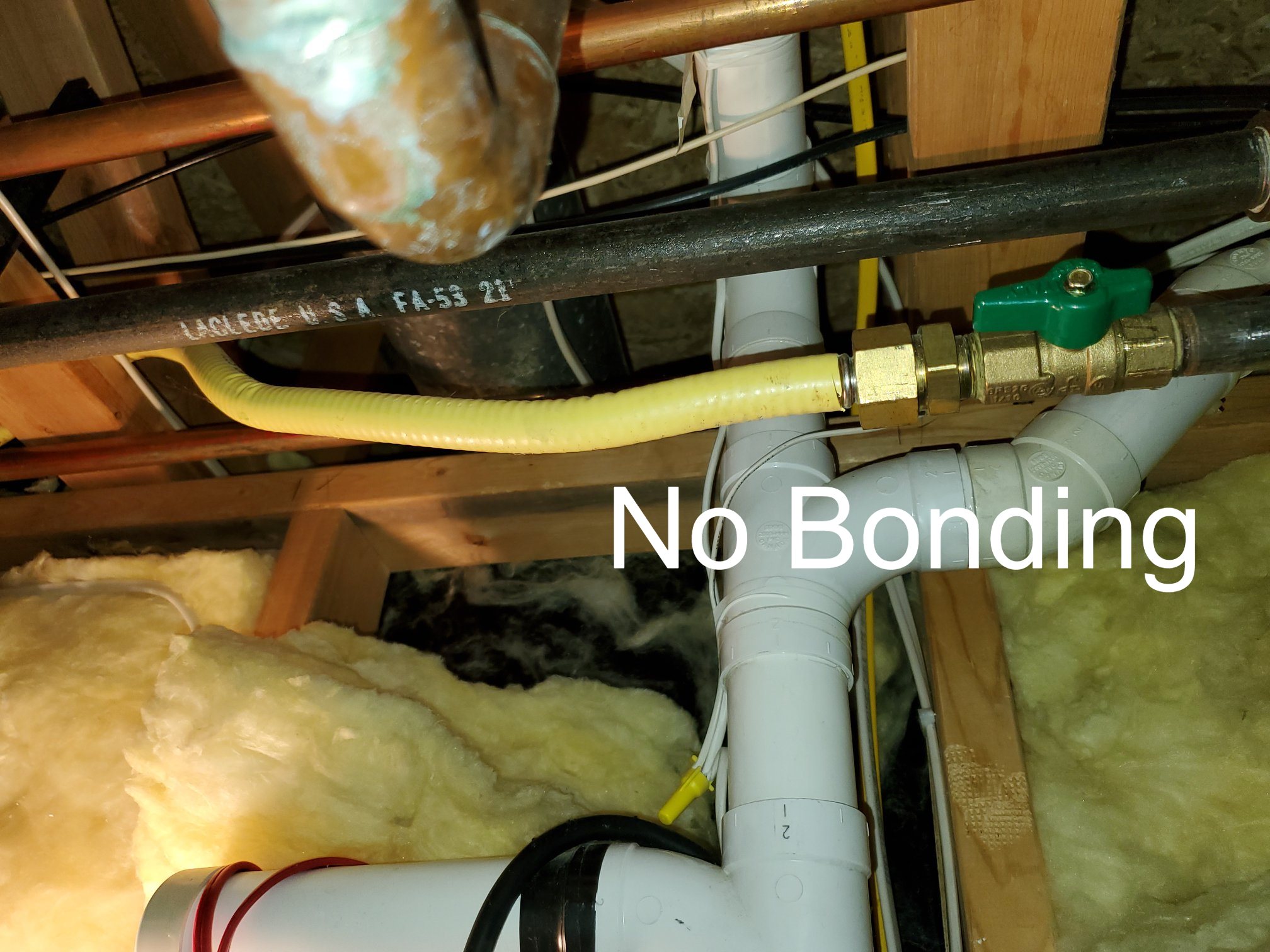

Bonding CSST - Structure Tech Home Inspections If CSST is installed without being properly bonded to current standards, you have an increased risk for damage to the material from a nearby lightning strike. If CSST is damaged, it can leak gas and cause an explosion and/or a fire. To the best of my knowledge, all manufacturers of CSST began implementing specific bonding requirements around 2006.

PDF Direct Bonding of Standard (Yellow) CSST CSST fitting located downstream of the utility gas meter or second-stage LP regulator. The bonding clamp attachment point may be at any location within the gas piping system. However, the shortest practical bonding wire length will improve the effectiveness of the direct-bond. The corrugated stainless steel tubing portion of the gas

CEC - Bonding gas pipe - Electrician Talk We have on a couple of occasions came from the panel to bond the gas line (whole house was pex). We normally only go from cold water line to gas line but I have also run to hot water line as well if they changed the hot water tank and plumbed it with pex (copper hot water line won't be bonded because it's normally done through the hot water ...

What is the difference between grounding and bonding ... Picture shows bonding procedure for when CSST gas line piping is used. This has always been required by the manufacturer and by codes since at least 2009 no matter which type of CSST is used. Reference IRC 2012 G2411.1.1. Use not less than a # 6 AWG copper or equivalent bonding jumper. The bonding shall connect to the metal piping between the ...

Grounding and Bonding of Gas Piping | Electrical ... ANSWER: I would prefer saying that you bond a gas pipe to something rather than saying you bond something to a gas pipe. Article 100 defines bonding as "the permanent joining of metallic parts to form an electrically conductive path that will ensure electrical continuity and the capacity to conduct safely any current likely to be imposed."

Gas line bonding help! - Electrician Talk It needs to be bonded within 5 foot of the gas line entering the house. Bonding the gas system when CSST is used is to drain off surges and lightning strikes and limit them from coming into the house and near the CSST, because it is so thin that (unlike iron pipe) it doesn't take much to make a pinhole in it. K.

Bonding CSST to electrical ground system - Home ... I had a licensed natural gas tech/plumber install a new branch line using CSST to a new fireplace. When I am asked him about bonding it, he said he had never heard of that before. From everything thing I've read, bonding seems necessary (to avoid damage to the CSST from lightning strike or otherwise stray electrical charge).

Properly Grounded Gas Supply Lines | CSST Gas Line Grounding CSST (Corrugated Stainless Steel Tubing) is a flexible, stainless steel pipe, usually yellow or black in color, that is used in buildings for gas supply lines. Because it can be bent, it is usually routed along or around floor/ceiling joists or inside wall cavities. This flexibility makes it less expensive to install and safer.

CSST Gas Line Bonding - YouTube - This is Scott Partin with A-Action Realty Inspection Services, lately we have been writing up an issue with the CSST ...

Bonding a residential gas pipe | Mike Holt's Forum Jan 22, 2008. #3. While the section provided above does prohibit a metal underground gas pipe system from being used as a grounding electrode, section 250.104 (B) does require the piping to be BONDED if it is determined that it is likely to become energized. S.

PDF Installation of CSST Gas Piping Systems - Connecticut CSST. CSST gas piping systems shall be bonded to the electrical service grounding electrode system. The bonding jumper shall connect to a metallic pipe or fitting between the point of delivery and the first downstream CSST fitting . The bonding jumper shall not be smaller than 6 AWG copper wire or equivalent. Gas piping systems

Gas line bonding - General Inspection Discussion ... You can't actually "bond" the system to earth. Bonding is bonding is bonding. You don't bond something "back to" something - it's either bonded, or it is not. If the gas line is bonded to the GES, then the GES is also bonded to the gas line. Likewise, if the service equipment is bonded to the GES, it is also bonded to the gas piping.

Do you have CSST Gas Piping? Check for Bonding. - HomesMSP When CSST is damaged, it can leak gas and cause an explosion and/or a fire. To the best of my knowledge, all manufacturers of CSST began implementing specific bonding requirements around 2007. Of course, proper bonding won't make CSST immune to damage from a nearby lightning strike, but it will reduce the risk of damage.
