35 draw the free body diagram of each object

To draw a free-body diagram, we draw the object of interest, draw all forces acting on that object, and resolve all force vectors into x - and y -components. We must draw a separate free-body diagram for each object in the problem. 22. Draw a free-body diagram of a block which slides down frictionless plane having an inclination of 9 15.0 c (Fig. P5.22). The block starts from rest at the top and the 26. Two objects are connected by a light string that passes over a frictionless pulley, as in Figure P5.26. Draw free-body dia- grams of both objects.

(a) Draw free-body diagrams of both objects. Find (b) the magnitude of the acceleration of the objects, (c) the tension in the string, and (d) the speed of each object 2. 0 0 s after it is released from rest.

Draw the free body diagram of each object

While drawing a free body diagram, we draw the object of interest by drawing all the forces acting on it and resolve all force vectors into x- and y-components. Separate free body diagrams should be drawn for each object in the problem. What is the free body diagram indicative of? Free-body diagrams for three situations are shown below. Note that the actual magnitudes of the individual forces are indicated on the diagram. In each of the above situations, there is an unbalanced force. It is commonly said that in each situation there is a net force acting upon the object. The net force is the vector sum of all the forces ... A free-body diagram can be drawn very simply, with squares and arrows, or you can make it much more complex. The only requirement is that you or someone else looking at it should be able to understand what the diagram is telling. A free-body diagram (FBD) is a representation of a certain object showing all of the external forces that acts on it.

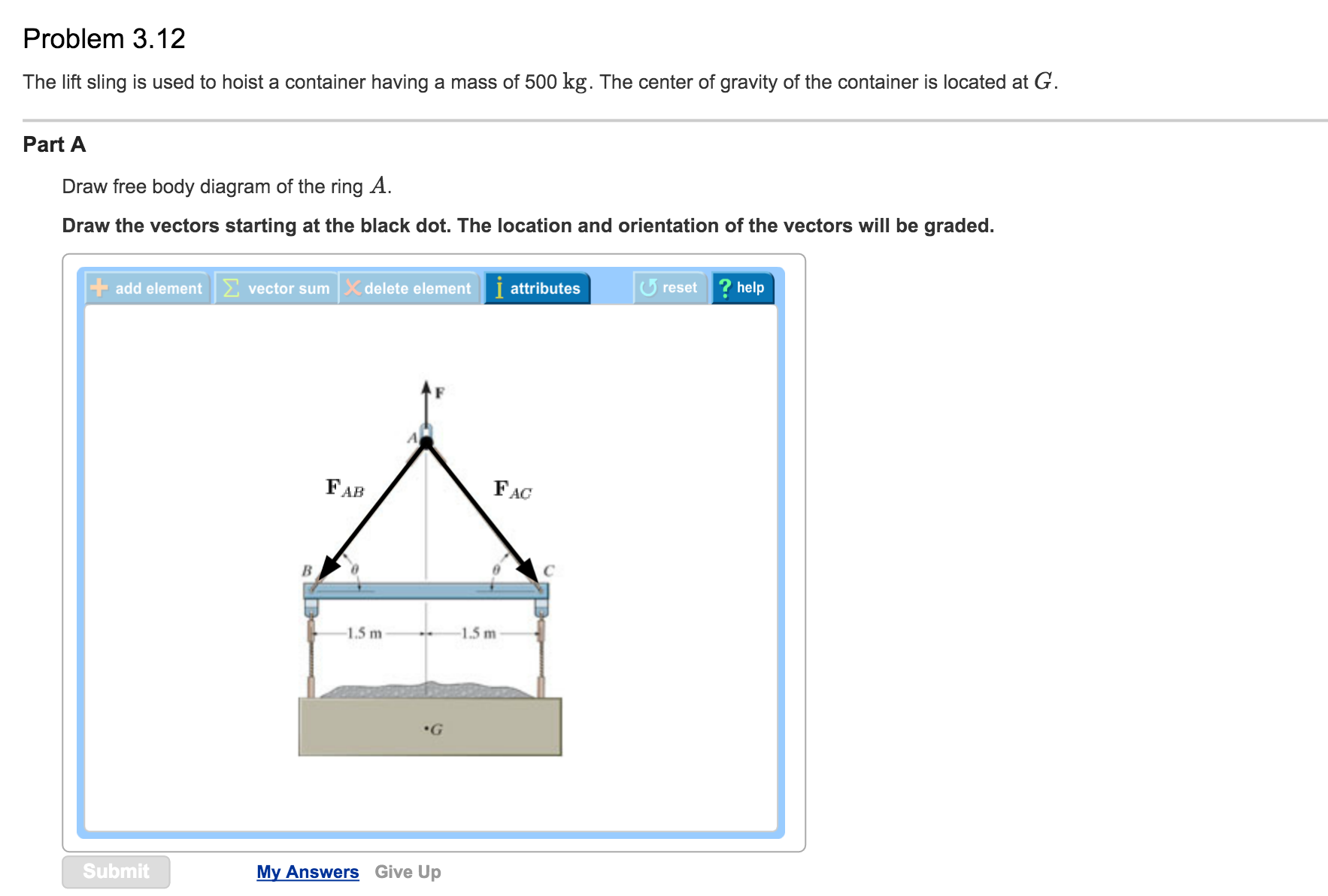

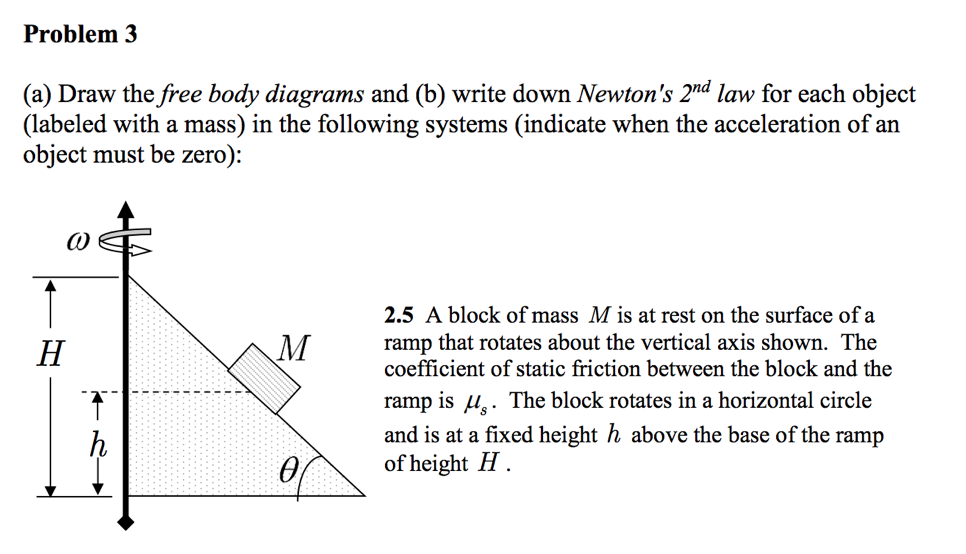

Draw the free body diagram of each object. 1. Draw a diagram of the object or objects that will be the system to be studied. 2. Draw a Free-body diagram for the object under consideration. 3. Identify the axis of rotation and determine the torques about it. Choose positive and negative directions of rotation, and assign the correct sign to each torque. 4. Mechanical Engineering questions and answers. Preliminary Problem 5.1 Figure 1 of 6 Part A Draw the free-body diagram of the object (a) (Figure 1) Draw the vectors starting at the black dots. The location and orientation of the vectors will be graded. The length of the vectors will not be graded. add element 500 N 2 m Submit My Answers Give Up. EXPLORATION 9.1 - Free-body diagrams for floating objects Sketch the free-body diagram of the blocks in Figure 9.2 as they float in the container of water. Note that each block is in equilibrium - what does that imply about the net force acting on each block? Because each block is in equilibrium, the net force acting on each block must be zero. If there are two or more objects, or bodies, in the problem, draw a separate free-body diagram for each object. Note: If there is acceleration, we do not directly include it in the free-body diagram; however, it may help to indicate acceleration outside the free-body diagram.

2 = 6:00 kg, and = 55:0 .(a)Draw free-body diagrams of both objects. Find(b)the magnitude of the acceleration of the objects,(c)the tension in the string, and(d)the speed of each object 2:00 s after it is released from rest. m 1 m 2 (a) T m 1g m 1 T N m 2g m 2 (b)Because the rope does not stretch, both objects have the same magnitude of ... Multiple-Body Problems. For the two-body problem above, we can consider 3 different free-body diagrams. For three bodies in motion together, we can consider up to 6 different free-body diagrams: the 3 objects independently, 2 objects at a go, and all 3 together. Find the force between any two bodies by simplifying a 3-body diagram into 2 bodies. qDrawa free-bodydiagramof the object of interest, based on the labeled picture. If additional objects are involved, draw separate free-body diagram for them qChoose a convenient coordinate systemfor each object qApply Newton's second law. The x-and y-components of Newton second law should be taken from the vector equation and written individually. Find step-by-step Physics solutions and your answer to the following textbook question: Draw a free-body diagram for each of the following objects: a projectile in motion in the presence of air resistance..

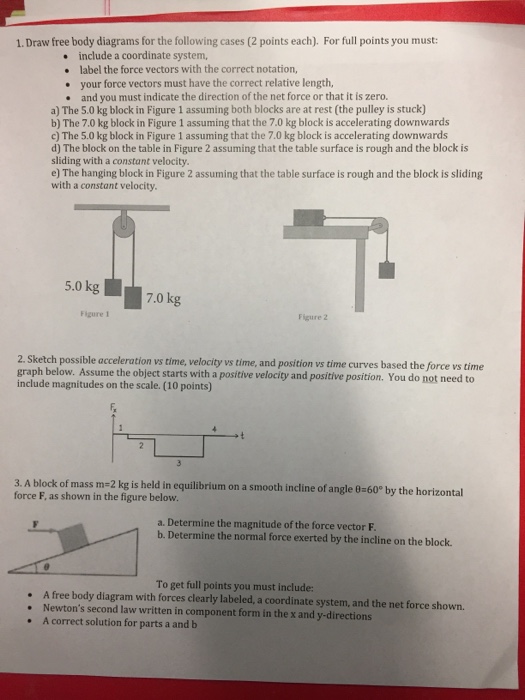

An object of mass m 1 = 3:80-kgplaced on a frictionless, horizontal table is connected to a string that passes over a pulley and then is fastened to a hanging object of mass m 2 = 7:20-kgas shown in the gure. a) Draw free-body diagrams of both objects. b)Find the magnitude of the acceleration of the objects. ) Find the tension in the string. For each situation below, draw a free-body diagram of the object that is identified. Label eachforce that you have included in your free-body diagram to indicate (1) the type of force, (2) the object on which the force is exerted, and (3) the object exerting the force.i.A block that is at rest on a ramp.ii.A block that is If there are two or more objects, or bodies, in the problem, draw a separate free-body diagram for each object. Note: If there is acceleration, we do not ...Definition of weight, vector form: →w=m→gw...Definition of weight, scalar form: w=mgw=mgNewton’s second law, vector form: →Fnet=∑...Newton’s second law, component form: ∑→Fx... Drawing Free-Body Diagrams Meaning of Net Force Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation. A free-body diagram is a special example of the vector diagrams that were discussed in an earlier unit.

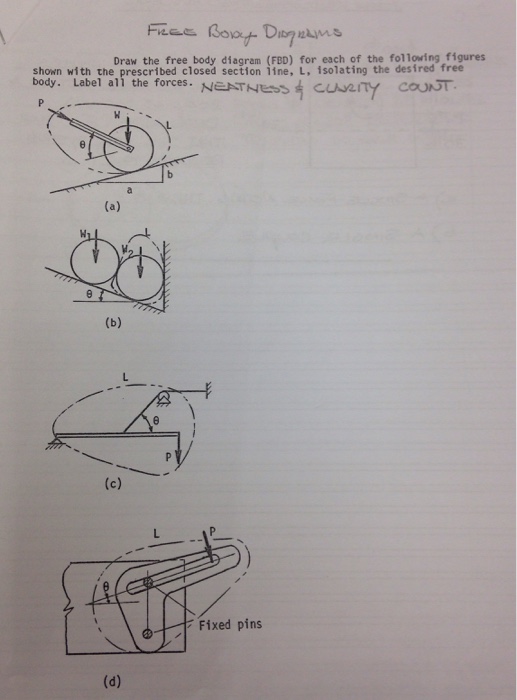

Draw the free-body diagram of each object. S00 N 4m (a) (4) 600Nm 200 N/m 3m -2m 2 m (b) (e) 400 N/m 400 N 3m 3m 2 m Im (c) (r) 2. Determine the horizontal and vertical components of reaction at the supports. Neglect the thickness of the beam. 500 Ib 600 lb ft A 5 ft -5 t -5 ft prepared by: Ahmed Raad, MSCE ENGINEERING MECHANICS STATICS 3. ...

To draw a free-body diagram, we draw the object of interest, draw all forces acting on that object, and resolve all force vectors into x - and y -components. We must draw a separate free-body diagram for each object in the problem.

The free body diagram helps you understand and solve static and dynamic problem involving forces. It is a diagram including all forces acting on a given object without the other object in the system. You need to first understand all the forces acting on the object and then represent these force by arrows in the direction of the force to be drawn.

1. Draw free-body diagrams for each of the following objects in uniform circular motion. State the force(s) providing the centripetal force. 2. The Earth orbiting the Sun 3. A car making a curve on a horizontal road 4. A ball on a string swinging in circles on a horizontal surface 5. A ball on a string swinging in circles in the vertical plane at the top of the circle at the bottom of the ...

This video lesson explains how to analyze a physical situation and construct a free-body diagram that shows the types of forces, the direction of the forces,...

Note: if you have multiple objects in a problem, you will need to draw a separate free-body diagram for each object, which you can do by following the 3 steps (step 1 being common to all objects, and step 2 and 3 specific to each object). Examples of drawing free-body diagrams. To better understand how to draw free-body diagrams using the 3 ...

Drawing Free-Body Diagrams . Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation. A free -body diagram is a special example of the vector diagrams; these diagrams will be used throughout your study of physics. The size of the arrow in a free -body diagram is ...

Normal Forces (or Reaction Forces): Every object in direct contact with the body will exert a normal force on that body which prevents the ...28 Jul 2021 · Uploaded by Jacob Moore

We must draw a separate free-body diagram for each object in the problem. A free-body diagram is a useful means of describing and analyzing all the forces that act on a body to determine equilibrium according to Newton's first law or acceleration according to Newton's second law.

Three objects are connected on a table as shown in Figure. The coefficient of kinetic friction between the block of and the table is 0.350. The objects have masses of = 4.00 kg, = 1.00 kg, and = 2.00 kg, and the pulleys are frictionless. (a) Draw a free-body diagram of each object.

An object of mass m 1 = 5. 0 0 k g placed on a frictionless, horizontal table is connected to a string that passes over a pulley and then is fastened to a hanging object of mass m 2 = 9. 0 0 k g as shown in above figure. (a) Draw free-body diagrams of both objects. Find (b) the magnitude of the acceleration of the objects and (c) the tension in ...

(a) Draw free-body diagrams of both objects. If the incline is frictionless and if m 1 = 5.00 kg, m 2 = 10.00 kg, and q = 60.0 °, find (b) the accelerations of the objects, (c) the tension in the string, and (d) the speed of each object 2.00 s after being released from rest. (a) Free Body Diagram (b) sin 60 ° = F in dir /100 N

Often a Free Body Diagram is useful or necessary to solve a problem that involves forces. Follow these steps, and you'll solve any problem with little difficulty. 1. Draw one Free Body Diagram for each object (see below for what is a good FBD). 2. Break the forces up into components. 3.

A free-body diagram can be drawn very simply, with squares and arrows, or you can make it much more complex. The only requirement is that you or someone else looking at it should be able to understand what the diagram is telling. A free-body diagram (FBD) is a representation of a certain object showing all of the external forces that acts on it.

Free-body diagrams for three situations are shown below. Note that the actual magnitudes of the individual forces are indicated on the diagram. In each of the above situations, there is an unbalanced force. It is commonly said that in each situation there is a net force acting upon the object. The net force is the vector sum of all the forces ...

While drawing a free body diagram, we draw the object of interest by drawing all the forces acting on it and resolve all force vectors into x- and y-components. Separate free body diagrams should be drawn for each object in the problem. What is the free body diagram indicative of?
