37 determine the magnitude of the resultant displacement by drawing a scale diagram.

A journey consists of two displacements: the first is 500m in a northerly direction and the second is 200m in an easterly direction. In a space below draw, to scale, a vector diagram of these ...

(a) In the space below draw, to scale, a vector diagram of these displacements. State the scale of your diagram. On your diagram, show the two displacements and the resultant displacement. Determine the size (magnitude) and direction of the resultant displacement. N scale = .....

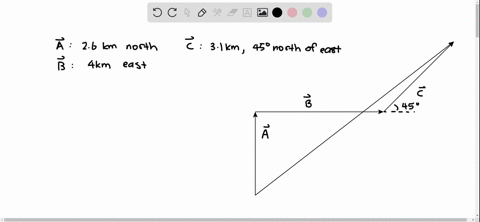

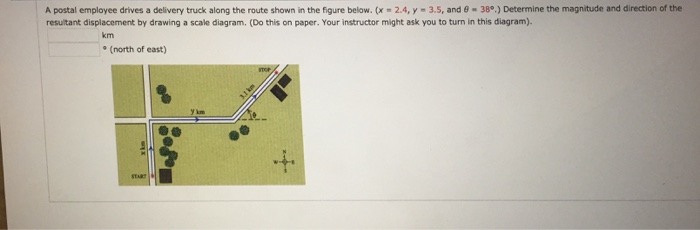

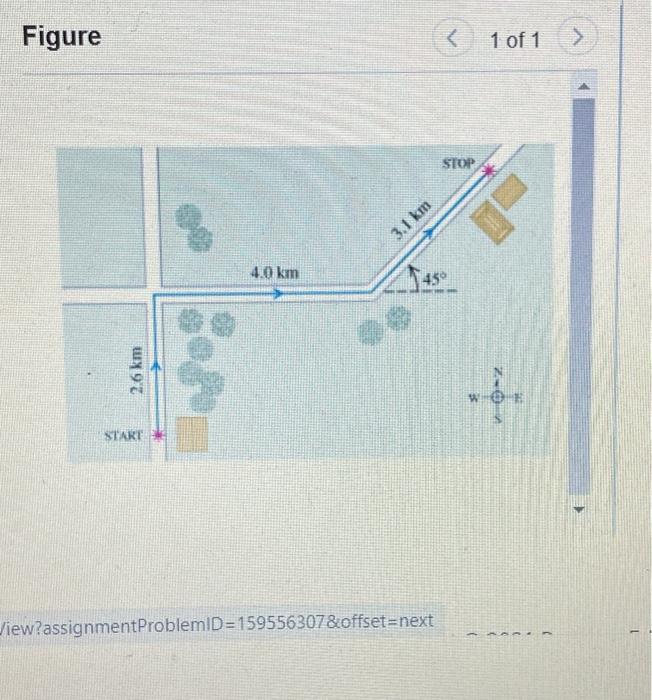

Determine the direction of the resultant displacement. Express your answer using two significant figures. Question : A postal employee drives a delivery truck along the route shown in the figure (Figure 1) .Determine the magnitude of the resultant displacement by drawing a scale diagram.

Determine the magnitude of the resultant displacement by drawing a scale diagram.

18.On the diagram above, construct the resultant vector that represents the dog's total displacement. 19.Using a metric ruler and the vector diagram, determine the scale used in the diagram. 20.The graph below represents the velocity of an object traveling in a straight line as a function of time. Determine the magnitude of the total displacement

Find the magnitude and direction of the resultant displacement, using the method of components. In a vector-addition diagram (roughly to scale), show that the results ant displacement found from your diagram is in qualitative agreement with the result you obtained using the method of components.

This is the direction of the resultant displacement. If using compass bearings, remember to relate the angle to 000. For example, in the diagram below, the angle θ is 37˚, so the bearing will be ...

Determine the magnitude of the resultant displacement by drawing a scale diagram..

Vector A is 4 N pointed at 60 degrees. Vector B is 6 N pointed at 120 degrees. Find the magnitude and direction of the resultant vector. Draw to scale a diagram depicting these forces and the ...

The magnitude of the resultant force F R can be determined by measuring the length of the diagonal PB and multiplying it by the scale of the diagram (1 cm =10 N in this instance). The angle α can be determined by use of a protractor. The values for above diagram are: FR =87 N and α 23° (to the nearest whole number).

Measure this line in cm, multiply by 10 to give you the magnitude of the displacement, and with a protractor, measure the angle between the line and the X-axis, which is the direction of the resultant displacement.|||plot head to tail usin' the xy plane, then, just use the cosine law to calculate the magnitude.|||First draw a normal x/y plane.

Find the magnitude and direction of the resultant displacement, using the method of components. In a vector-addition diagram (roughly to scale), show that the resultant displacement found from your diagram is in qualitative agreement with the result you obtained by using the method of components.

2143. This preview shows page 21 - 25 out of 43 pages. Part A Determine the magnitude of the resultant displacement by drawing a scale diagram. Express your answer using two significant figures. ANSWER: Correct 7.8 {\rm km} Part B Determine the direction of the resultant displacement.

Express the result in terms of the magnitudes of the components F1 and F2 and the angle φ. View Answer. A postal employee drives a delivery truck over the route shown in Fig. 133. Use the method of components to determine the magnitude and direction of her resultant displacement. In a vector-.addition diagram (roughly to scale), show that the ...

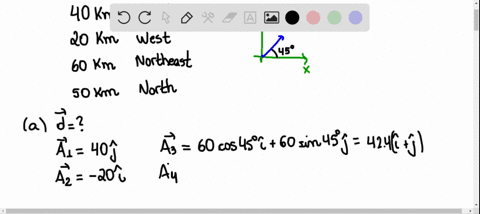

To draw the resultant vector, join the tail of the first vector with the second vector's head and put the arrowhead. To determine the magnitude, measure the length of resultant R, and to find out the direction, measure the angle of the resultant with the x-axis. Example 3. Consider a ship sailing at 45 o north-east.

Determine the magnitude and direction of the resultant displacement by drawing a scale diagram. On the x axis draw a line 215cm longthis will represent the 215km east travel. It goes 24 km north 40 km east and and 31 km north east 45 degrees north east. Part a determine the magnitude of the resultant displacement by drawing a scale diagram.

Determine the magnitude and direction of the resultant displacement by drawing a scale diagram. (See also Exercise 1.38 for a different approach to this same problem.) by FisMat Tutores-May 22, 2021. 0. 31. A postal employee drives a delivery truck along the route shown in Fig. 1.33. Determine the magnitude and direction of the resultant ...

Transcribed image text: Fig. 2.2 is an incomplete vector diagram of the forces acting on the boat. resultant force force from river current (b) Fig. 3.1 is an overhead view of two tractors pulling a tree trunk. [2] tractors 30 000N 20° tree trunk 20 000N Fig. 3.1 The force exerted by each tractor is indicated in the diagram. In the space below, carefully draw a scale diagram to determine the ...

Expert's answer. We see the distances, we see the yellow total displacement vector AE. We can use Pythagorean theorem to find the magnitude. First, find displacement in the horizontal direction: (it is negative because we imply normal notation where positive x looks to the right). d y = 1 3 + 5 = 1 8 k m, d = d x 2 + d y 2 = 6 2 + 1 8 2 = 1 9 k ...

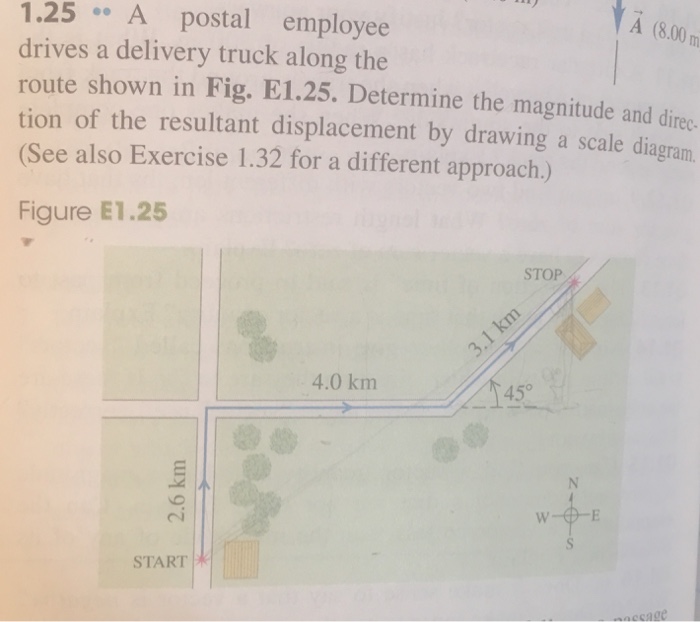

Physics University Physics (14th Edition) A postal employee drives a delivery truck along the route shown in Fig. E1.25. Determine the magnitude and direction of the resultant displacement by drawing a scale diagram. (Sec also Exercise 1.32 for a different approach.)

Chapter 1: Exercises (1.31 - 1.35) 1.31 A postal employee drives a delivery truck along the route shown in Fig. 1.26. Determine the magnitude and direction of the resultant displacement by drawing a scale diagram. (See also dxercise 1.38 for a different approach to this same problem.)

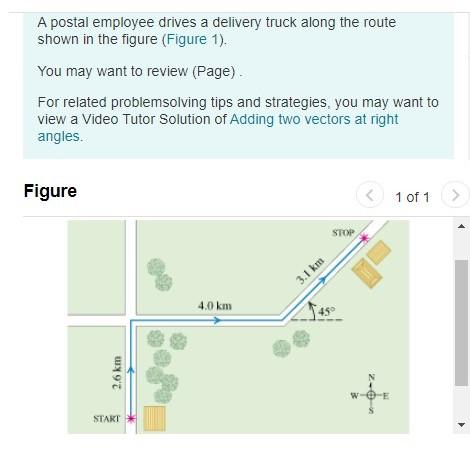

Problem: A postal employee drives a delivery truck along the route shown in the figure .You may want to review (Pages 10 - 14). For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of Adding two vectors at right angles.Determine the magnitude of the resultant displacement by drawing a scale diagram.Determine the direction of the resultant displacement.

This photo about: Determine the Magnitude Of the Resultant Displacement by Drawing A Scale Diagram., entitled as Burial And Exhumation History Of The Galilee Basin Australia Determine The Magnitude Of The Resultant Displacement By Drawing A Scale Diagram. - also describes Burial and exhumation history of the Galilee Basin Australia and labeled as: determine the, with resolution 4603px x 3544px

Determine the magnitude of the resultant displacement by drawing a scale diagram. It goes 24 km north 40 km east and and 31 km north east 45 degrees north east. 131 a postal employee drives a delivery truck along the route shown in fig. North of east of the resultant displacement.

Find the magnitude and direction (relative to the forward direction) of the resultant force which these engines exert on the rocket. 1.38 A postal employee drives a delivery truck over the route shown in Fig. 1.26. Use the method of components to determine the magnitude and direction of her resultant displacement.

1. Two forces are acting on an object. One force has a magnitude of 10N and the other force has a magnitude of 8N. The angle between the two forces is 30°. Draw a vector diagram to find the resultant force. 2. A force of 280N and a force of 320N are acting on an object. There is an angle of 20° between the forces.

The resultant vector is the vector that 'results' from adding two or more vectors together. There are a two different ways to calculate the resultant vector. Methods for calculating a Resultant Vector: The head to tail method to calculate a resultant which involves lining up the head of the one vector with the tail of the other.

Determine the Magnitude Of the Resultant Displacement by Drawing A Scale Diagram. the physics classroom vector addition using trigonometry to determine a vector s direction the direction of a resultant vector can often be determined by use of trigonometric functions vectors and direction the physics classroom a study of motion will involve the introduction of a variety of quantities that are ...

Use the method of components to determine the magnitude and direction of her resultant displacement. In a vector-addition diagram (roughly to scale), show that the resultant displacement found from your diagram is in qualitative agreement with the result you obtained by using the method of components.

Determine the magnitude of the resultant displacement by drawing a scale diagram.. Determine the magnitude and direction of the resultant displacement by drawing a scale diagram. (See also. Exercise 1.32 for a different approach.) Solution.1 page Determine the magnitude of the resultant displacement by drawing a scale diagram.

Determine the magnitude and direction of the resultant displacement by drawing a scale diagram. (See also Exercise 1.38 for a different approach to this same problem.) View Answer. Use Coulombs law to determine the magnitude and direction of the electric field at points A and B in Fig. 16-57 due to the two positive charges (Q = 7.0μC) shown.
