Mirror Ray Diagram Answers. 3 Spherical mirror Ray diagram worksheet. Apparatus Biconvex glass lens spherical concave mirror meter ruler optical bench. When parallel rays are incident upon a spherical mirror the reflected rays intersect but the focal point F For a concave mirror the focal point is in tear of the mirror. Ray diagrams help us trace the path of the light for the person to view a point on the image of an object. Ray diagram uses lines with arrows to represent the incident ray and the reflected ray. It also helps us trace the direction in which the light travels. Plane Mirror vs Spherical Mirrors

The following is the diagram showing the concave as well as the convex mirror. Concave Mirror A spherical mirror of which the reflecting surface is curved inwards which means that it faces towards the centre of the sphere is known to be a concave mirror.

Spherical mirror ray diagram

Align a straight edge with the point of incidence and the focal point, and draw the second reflected ray. Place arrowheads upon the rays to indicate their direction of travel. The two rays should be diverging upon reflection. 3. Locate and mark the image of the top of the object. Concave spherical mirrors and ray diagrams A spherical mirror is a reflective segment of a sphere with a radius of curvature R. It can be convex (outside surface of a sphere) or concave (inside surface). First we will consider a concave spherical mirror. The mirror has a radius R, and the distance from the mirror to the object is p. Rules For Making Ray Diagrams By Spherical Mirror (i) A ray passing to the principal axis, after reflection, will pass through the principal focus in case of a concave mirror or appear to diverge from the principal focus in case of a convex mirror. CBSE Class 10 Science Chapter 10

Spherical mirror ray diagram. The method for drawing ray diagrams for concave mirror is described below. The method is applied to the task of drawing a ray diagram for an object located beyond the center of curvature (C) of a concave mirror. Yet the same method works for drawing a ray diagram for any object location. 1. Pick a point on the top of the object and draw two ... Ray Optics Simulation. ... Mirror (Curved) A mirror whose shape is curved. Circular and parabolic curves are available. ... Glass with any shapes constructed from line segments and circular arcs, including prisms and "spherical" lenses. Glass (Ideal lens) An ideal lens that obeys exactly the thin lens equation (1/p + 1/q = 1/f). ... Ray Diagrams to Represent Images Formed by Spherical Mirrors When we place an object in front of a mirror, each point of it emits a ray of light. But for convenience, only two rays coming out of the ends of the object are considered. Ray diagrams for spherical mirrors: Ray diagram is defined as the simple graphical method to indicate the positions of the object and image in a system of mirrors or lenses. Table below shows the conditions for ray diagram: Ray 1 Ray 2 Ray 3 A ray parallel to the principal axis passes through or diverges from the focal point F after reflection.

Let's find out the mechanism involved in the image formation by spherical mirrors… Suggested Videos Ray Diagrams Ray diagrams are used to depict the image formation by tracing the path of light rays i.e. incident rays and reflected rays. They are drawn in order for anyone to view a point on the image of an object. Yet the same method works for drawing a ray diagram for any object location. 1. Pick a point on the top of the object and draw two incident rays traveling towards the mirror. Using a straight edge, accurately draw one ray so that it passes exactly through the focal point on the way to the mirror. Drawing the ray diagrams is an ideal way to illustrate the formation of images by spherical mirrors. The intersection of at least two reflected rays give the correct position of image of the point object. The following table illustrates the image formed by a concave mirror for different positions of the given object − Uses of Concave Mirror Practice: Ray diagrams and curved mirrors. This is the currently selected item. Mirror formula derivation. "Objects in the mirror are ..." actually images in the mirror. Cartesian sign conventions mirrors. Practice: Sign convention. Solved example: Mirror formula. Practice: Using the mirror formula.

Fullscreen This Demonstration lets you visualize the ray diagrams for concave and convex spherical mirrors. By manipulating the object and mirror locations, you can create real or virtual images. The ray parallel to the principal axis and the ray that hits the center of the mirror are drawn. Contributed by: Ernest Lee (March 2011) Ray Diagram for Convex and Concave Mirror. Is this page helpful? A mirror is a part of a smooth and highly polished reflecting surface.What are convex and concave mirrors?: If the i...Position: Depends on the position of the objectImage: Concave mirrors can form inverted and ...Size: Size can be smaller, larger or of the same ...Q 1: How is the image formed by a concave and convex mirror?Q 3: Can we see the real image in the concave mirror? Spherical Mirrors: Let's learn Image Formation by Spherical Mirrors. How to use ray diagrams to find the image formed by Spherical Mirrors: Concave and Conve... Use ray diagrams and the mirror equation to calculate the properties of an image in a spherical mirror. The image in a plane mirror has the same size as the object, is upright, and is the same distance behind the mirror as the object is in front of the mirror.

Ray diagram for Convex mirror Centre of Curvature - The above diagram a spherical mirror is part of the imaginary sphere. The centre of the hollow sphere of which the spherical mirror forms a part. Pole (P) - The geometrical centre of the spherical mirror.

A ray that strikes the vertex of a spherical mirror is reflected symmetrically about the optical axis of the mirror (ray 4 in Figure 2.9). We use ray tracing to illustrate how images are formed by mirrors and to obtain numerical information about optical properties of the mirror.

Apr 23, 2020 — For a Concave mirror, object can be kept at different positionsHence, we take different casesCase 1 - Object is Placed at infinityIn this ...

Spherical mirror. Rays parallel to the axis get reflected through a common point the focal point or focus F. Focal length f is distance from V to F. C F V f. F ... Ray Diagrams for Concave Mirrors •two principal rays are sufficient to find image, use third and fourth to check your diagram

Concave and Convex Mirrors. iPad Spherical Mirror Simulation. Concave and Convex Lenses. Lens Simulation for iPad. Lens Refraction and Spherical Aberration. Lenses & Chromatic Aberration. 2D Image Formation by Lenses. Optics of the Human Eye. Rainbow Formation.

The centre of curvature (C) is the centre of the circle (sphere) of which the mirror is an arc. The focal length (f) and radius of curvature (R) are defined in the diagram at the right. It can be shown that R = 2f. "A" in the diagram is known as the "vertex" (often labeled V). Image formation in spherical mirrors is defined by certain ...

Convex & concave mirror ray diagrams . Practice: Ray diagrams. Practice: Ray diagrams and curved mirrors ... in a previous video we saw that if you take a mirror which is a part of a sphere then we call such mirrors as spherical mirrors and if this mirror is small enough meaning if it's a small enough part of the sphere then if you incident ...

121 - Ray Diagram - MirrorsIn this video Paul Andersen explains how ray diagrams can be used to determine the size and location of a reflected image. Ray di...

Mar 28, 2021 — Image Formation By Concave Mirror And Their Ray Diagrams ... Two possibilities of the position of the object are possible in the case of a convex ...Position of object: Position of imageWithin focus(Between P and F): Behind the mir...Between F and C: Beyond CBeyond C: Between F and C

Convex Mirror Image. A convex mirror forms a virtual image.The cartesian sign convention is used here.. Using a ray parallel to the principal axis and one incident upon the center of the mirror, the position of the image can be constructed by back-projecting the rays which reflect from the mirror.

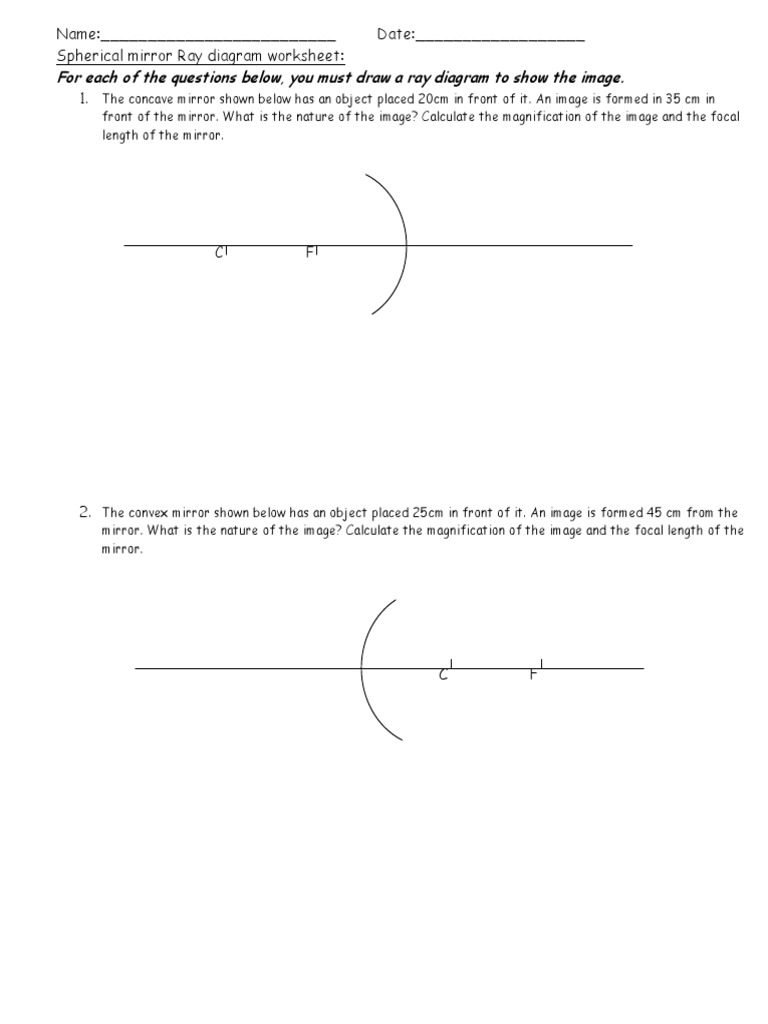

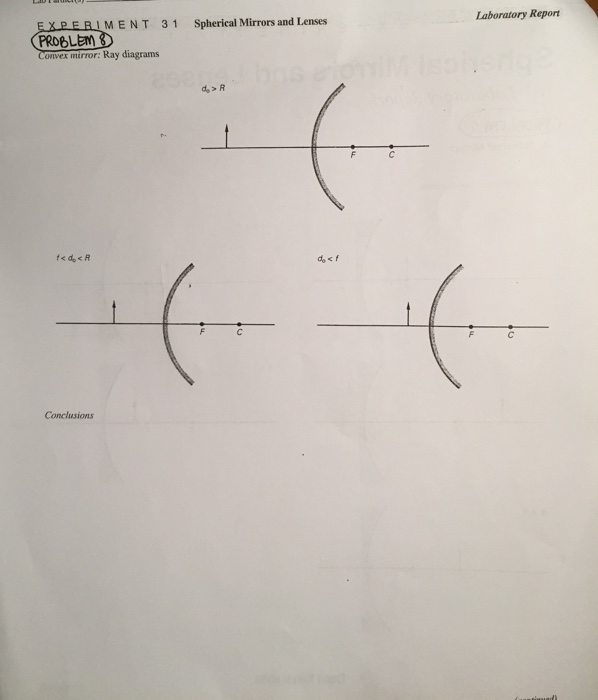

Spherical mirror Ray diagram worksheet: For each of the questions below, you must draw a ray diagram to show the image. 1. The concave mirror shown below has an object placed 20cm in front of it. An image is formed in 35 cm in front of the mirror. What is the nature of the image? Calculate the magnification of the image and the focal

Let us study in detail about a spherical mirror. ... In the diagram given above, the ray of light that approaches the mirror is the "Incident Ray". The ray that leaves the mirror is the "Reflected Ray". At the point of incidence where the incident ray strikes the mirror, a perpendicular line is drawn is the "Normal". ...

Rule 2 - Ray passing through focus will become parallel to principal axis after reflection. For a concave mirror , we see that ray passing through focus becomes parallel to principal axis after reflection. For a convex mirror, since focus is on the right side, it appears that ray passes through focus, and then it becomes parallel to principal axis.

Spherical mirror ray diagram question. Ask Question Asked 7 years, 2 months ago. Active 7 months ago. Viewed 1k times 2 $\begingroup$ why does a ray, parallel to the principle axis, intersect the principal axis at half the radius of curvature, i.e. focus? EDIT. I was taught that in a spherical concave mirror, the rays parallel to the principle ...

Rules For Making Ray Diagrams By Spherical Mirror (i) A ray passing to the principal axis, after reflection, will pass through the principal focus in case of a concave mirror or appear to diverge from the principal focus in case of a convex mirror. CBSE Class 10 Science Chapter 10

Concave spherical mirrors and ray diagrams A spherical mirror is a reflective segment of a sphere with a radius of curvature R. It can be convex (outside surface of a sphere) or concave (inside surface). First we will consider a concave spherical mirror. The mirror has a radius R, and the distance from the mirror to the object is p.

Align a straight edge with the point of incidence and the focal point, and draw the second reflected ray. Place arrowheads upon the rays to indicate their direction of travel. The two rays should be diverging upon reflection. 3. Locate and mark the image of the top of the object.
