Does a Washing Machine Need a Trap on the Drain Line?. When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer. If ... Received 2,007 Votes on 1,849 Posts. I'm not a plumber so I don't know how this would be done exactly to code but I do know you cannot run 2 washers into one 1-1/2" drain line. With both draining the water would not drain fast enough without backing up in the drain tube. Logic would seem to dictate that you will need a second stub into your ... If so your drain pipe should be 2" PVC. That would definitly cause slow drainage and backup, especially with newer model washing machines, they pump out about 20 gallons a minute! I would access the wall behind the machine, and see if there is a p-trap on the line (there should be a 2' P-trap some where).
Washing machine drain diagram. Wiring Diagram Samsung Washing Machine Drain Pump. By Margaret Byrd | October 8, 2019. 0 Comment. ... Samsung Top Loader Washing Machine Drain Pump Lategan And Van Biljoens Appliance Spares Parts Accessories Samsung Flexwash Wv55m9600a Series Service Manual Manualzz Plumbing a washing machine drain diagrams. Posted on 03.12.2020 by savgreenmak savgreenmak. How do you plumb a washing machine drain? The correct way to drain a washing machine is to install a standpipe. That is a vertical length of pipe that connects to a P-trap that, in turn, connects to the drain . The top of the standpipe must extend above ... Some advanced washing machines have signal errors that identify the cause of a leak, but for most washing machines, you'll need to run a diagnostic test. Start by running your washer through a drain cycle. Observe the washing machine as it pumps water into the hoses and up into the standpipe. See my page, Washing Machine Pipes, for a suggestion. When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer. If they omit the trap and vent, it's a mistake that can. Washing Machine Drain and Feed Line Diagram. Visit.
How to Unclog a Washing Machine Drain Pipe. First things first, turn the water supply to the appliance off, and also switch the power to the area off at the breaker before you attempt any repairs. Trust me you don't want a short circuit on top of the whole clogged drain problem. Assembly Option 3. This photo shows a washing machine drain joined to a laundry sink drain. A. is once again venting the two fixtures to the roof. B. is a 1-1/2" vent 90 degree elbow looking at an upside down 1-1/2" san tee. The san tee is upside down because its medium turn sweep must be aligned with the flow. LG WT7200CW Detergent Tray Assembly - Genuine OEM. Detergent Tray Assembly for LG WT7200CW Washing Machine. Genuine product manufactured by LG. Read More. $30.89. Over 50 In Stock. Diagram #. K300. 6. Connect the washing machine's drain tube to the vertically mounted pipe or also referred to as the stand pipe. Make sure that you'll use the right fitting to connect the washer's hose to the drain pipe. 7. Set up your washing machine. Make sure that the water supply lines are connected to the right tap.
Shown below is the Whirlpool diagram and the GE clip. And the standard height for a washing machine outlet box is 42" in our area. So now you have three different numbers. But the important thing is to get the drain, or the drain hose loop in the case of GE's anti-siphon clip, above the flood level of the rim of the washer tub. GoodHome IDS | Furniture, Home Design And Creative The drain hose exits the washing machine toward the bottom and travels up to the nearby sink or standpipe. It drains the water from the washing machine and is usually made of corrugated plastic. Drain hoses are largely universal and come in widths from 1 to 1.25 inches in diameter. UNIVERSAL WASHING MACHINE FLOOR TRAY - Metallic Carbon. PM7X3 $ 33.80 WASHING MACHINE 4.5' CORRUGATED DRAIN HOSE. WH41X10096 $ 14.70 Washing Machine 2 Pack RUBBER INLET HOSE, 4' WH41X10207 $ 15.60 Washing Machine Drain Hose Extension Kit. WH49X301 $ 32.40 Appliance Slides 2 Pack. WX05X12009
Washing Machine Dwg Free Cad Blocks Download
3 Software State Machine This washing machine has the following states in its life cycle: Standby, Selection, Execution, Pause, BrownOut, Delay, End, Test, and Failure. • Standby: When the washer is power on, it goes to Standby state. The door is unlocked. • Selection: After the user selects a wash program by turning the knob, the machine ...
Dwv Diagram For Half Bath Washing Machine Terry Love Plumbing Advice Remodel Diy Professional Forum
There are a few possibilities why your washing machine won't drain. that might happen. Your washer may have a clogged drain hose or the pump may be broken. A broken lid switch or belt could also be the culprit. It may even be something as simple as the hose being jammed. Whatever the reason, the water will need to be drained from the washing machine before any work or diagnosis can be done.
Washing Machine Pipes Pipe Configuration Images Helpful Tips
1) Is my diagram the water will exit the washing machine in the 1.5inch bathtub pipe 3 to 4 ft downstream from the bathtub p-trap to reduce the chances of syphoning, is this setup ok? 2) I also intend to place a stainless steel drain pan and thus will need to put the hose of the pain in a drain near the wall, how would you recommend connecting ...
Appliance411 Faq Washing Machine Won T Stay Full Of Water
In my diagram, I've shown a half-bathroom upstream from the washing machine. Imagine what happens when that toilet is flushed! The rushing water fills the pipe completely and pushes the air in the pipe ahead of it towards the sewer. That air MUST BE REPLACED and as the water goes past wye fittings, it creates a vacuum at that point.
Washing Machine And Drain Pump Thereof Diagram Schematic And Image 05
If your old or new washing machine does not spin we have some diy fix tips below to get it running again. The absolute first thing to do to your washing machine that will not spin or drain (whether it is top loading …. Washing Machine Will Not Spin or Drain Read More ». RemoveAndReplace .com. 106k followers.
Why Is Water Not Draining Properly From The Washing Machine Samsung India
Description: Samsung Washing Machine Parts Samsung Front Load Washer Parts for Samsung Front Load Washer Parts Diagram, image size 600 X 359 px, and to view image details please click the image.. Truly, we have been remarked that samsung front load washer parts diagram is being one of the most popular issue at this moment. So we attempted to find some terrific samsung front load washer parts ...
Common Washing Machine Problems How To Fix Them
washing machine diagram Laundry Room Design, Laundry In Bathroom, Laundry. Laundry Room Plumbing Routes Install the drain and vent Laundry Room Sink, washing machine diagram Laundry Room Design, Laundry In Bathroom.The under-counter Whirlpool ice machine is a stand-alone $ appliance which makes gourmet clear ice such as for a wet bar.
Washing Machine Causes Drain To Overflow Basement Issues And Problems
The drain hose for most washing machines is usually between 1 and 1 1/2 inches wide. A gooseneck at the end slips into the top of the drain standpipe. The drain hose is secured inside the drain pipe by means of a hose clamp, tie or some other securing fixture. The hose should not be looped or kinked behind the machine, or it could cause the ...
You Can Use Vinegar Or Some Other Type Of Cleaning Solution To Assist In The Task Understand More Details By Plumbing Installation Plumbing Drains Plumbing
The washing machine drain hose needs to be elevated at least 30″ to 3′ from the base of the washer for it to function properly. Without having the drain hose located high enough, gravity will take over and the water filling the washing machine will run out of the hose and into the floor drain.
The Laundry Wall Laundry List Fine Homebuilding
I've attached a diagram to avoid any miscommunications here. I'm redoing a bathroom/laundry room and have a washing machine and sink that could easily be combined into one drain and vent, if it's okay. Any other option would be a lot more work. a) My biggest question is whether I can drain the washing machine and a sink into the same 2" drain/vent?
Connecting Washing Machine To Sink Waste Moneysavingexpert Com Forums Washing Machine In Kitchen Washing Machine Installation Dishwasher Installation
Mar 7, 2013 - I have just moved to a new house, and I am now trying to hook up my washer. The laundry is in the basement. The drinage pipe is connected about 6' up the wall. The dranage hose on my washer is about 2' to short. Is it o.k. to cut the pipe shorter, or is it that high for a reason? Please help, my family is getting desperate for clean socks.:confused: I am a plumbing novice.
Washing Machine Causes Drain To Overflow Basement Issues And Problems
If so your drain pipe should be 2" PVC. That would definitly cause slow drainage and backup, especially with newer model washing machines, they pump out about 20 gallons a minute! I would access the wall behind the machine, and see if there is a p-trap on the line (there should be a 2' P-trap some where).
How Damaging Can A 3 Meter 10 Feet Long Drain Hose Be For The Washing Machine Pump And Microorganism Growth Home Improvement Stack Exchange
Received 2,007 Votes on 1,849 Posts. I'm not a plumber so I don't know how this would be done exactly to code but I do know you cannot run 2 washers into one 1-1/2" drain line. With both draining the water would not drain fast enough without backing up in the drain tube. Logic would seem to dictate that you will need a second stub into your ...
1
Does a Washing Machine Need a Trap on the Drain Line?. When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer. If ...
How To Install A Washing Machine 10 Steps With Pictures
Where To Locate P Trap And Venting In Complicated Washing Machine Installation See Sketch Home Improvement Stack Exchange
Washing Machine Drain Connection Detail Cad Template Dwg Cad Templates
How To Repair A Washing Machine Tips And Guidelines Howstuffworks
Appliance Drain Pan Systems Killarney Metals
Why Your Washing Machine Smells Like Sewage Or Rotten Eggs In House Plumbing
Washing Machine Drain Hose Installation Tutorial Youtube
Adding Trap And Vent To Existing Washing Machine Drain Terry Love Plumbing Advice Remodel Diy Professional Forum
Utility Sink And Washing Machine Drain Pipe Home Improvement Stack Exchange
Washing Machine Cad Block Free Download
Washing Machine Drain 2 Machines Into 1 Drain Doityourself Com Community Forums
Amana Lwa40aw2 Top Loading Washer Timer Stove Clocks And Appliance Timers
9 Water Flow Through Fully Automatic Washing Machine 1 Drain Hose Download Scientific Diagram
Drain Lines For Washing Machine Relocation
Washing Machine Drain Suddenly Backflows Home Improvement Stack Exchange
Wiring Diagram Washing Machine For Android Apk Download
Washing Machine In Garage Where Do I Let It Drain Utility Sink Standpipe Sink Drain

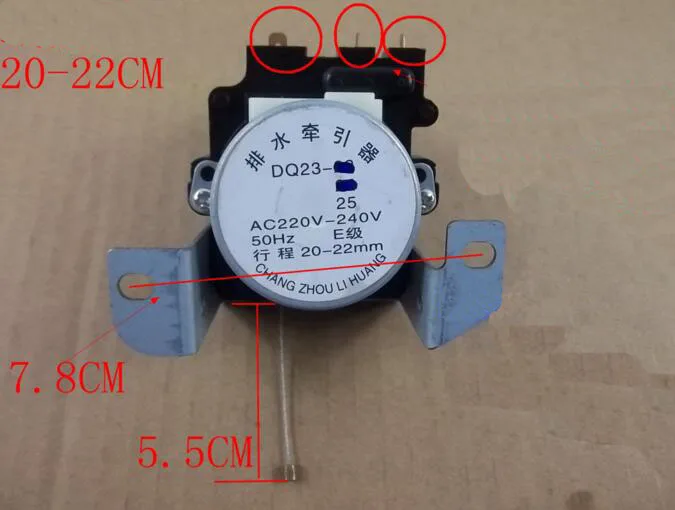

Mesin Cuci Traktor Menguras Bermotor Xqb60 10 Xqb52 61 24shc1 Ntcf 3 Pins Washing Machine Drain Motor Drain Motormotor Drain Aliexpress
